DOI 10.35381/cm.v10i18.1236
Bibliometric analysis of Life Cycle Assessment articles visible in Scopus and Web of Science
Análisis bibliométrico de artículos de Life Cycle Assessment visibles en Scopus y Web of Science
María Concepción Martínez-Rodríguez
mcmartinezr@ipn.mx
Instituto Politécnico Nacional, Centro Interdisciplinario de Estudios sobre Medio Ambiente y Desarrollo, Ciudad de México, México
México
https://orcid.org/0000-0003-3094-5411
Sara Milena Aponte-Gaona
Instituto Politécnico Nacional, Ciudad de México, México
México
https://orcid.org/0000-0003-3220-2961
Ana Laura Cervantes-Nájera
Instituto Politécnico Nacional, Centro Interdisciplinario de Estudios sobre Medio Ambiente y Desarrollo. Ciudad de México, México
México
https://orcid.org/0000-0003-3841-2011
Recibido: 10 de febrero 2023
Revisado: 15 de marzo 2023
Aprobado: 15 de noviembre 2023
Publicado: 01 de enero 2024
ABSTRACT
The interest and concern generated in recent years about the environment has increased. Countries have signed treaties and agreements in search of sustainable development with the goal of an environmental, social, and economic balance. Life Cycle Assessment (LCA) has been established in this context as an international tool of great utility in different areas to identify and quantify the environmental loads of a process or product. In this article, a bibliometric analysis is carried out using the Web of Science (WoS) and Scopus databases about LCA, indicating the values of scientific production in the period 2000-2020, by country, organization, and subject. Finally, a mapping for the keywords was performed using the VosViewer software.
Descriptors: Documentary analysis; decision making; environmental impact; life cycle assessment; sustainable development. (UNESCO Thesaurus).
RESUMEN
El interés y la preocupación generados en los últimos años por el medio ambiente ha aumentado. Los países han firmado tratados y convenios en busca del desarrollo sostenible con el objetivo de lograr un equilibrio ambiental, social y económico. Life Cycle Assessment (LCA) se ha establecido en este contexto como una herramienta internacional de gran utilidad en diferentes áreas para identificar y cuantificar las cargas ambientales de un proceso o producto. En este artículo se realiza un análisis bibliométrico utilizando las bases de datos Web of Science (WoS) y Scopus sobre LCA, indicando los valores de la producción científica en el período 2000-2020, por país, organización y temática. Finalmente, se realizó un mapeo de las palabras clave utilizando el software VosViewer.
Descriptores: Análisis documental; toma de decisiones; impacto ambiental; ciclo de vida; desarrollo sostenible. (Tesauro UNESCO).
Life Cycle Assessment (LCA) is a tool for environmental management that allows companies and organisations to identify and quantify the environmental burdens associated with their processes by establishing the inputs and outputs of matter and energy throughout the entire life cycle of the product or a part of it depending on the object of the study and the system delimitations. ISO 14001 standardises the elaboration of an LCA by containing the requirements and guidelines together with standards 14040 to 14044 (Aristizábal Alzate et al., 2020).
This method has been used for the waste management systems analysis (Bovea et al., 2017; Sharma & Shandel, 2021), wind farms (Li et al., 2021), comparison of wheat straw treatment (Deng & Adams II, 2020), steel manufacturing exhaust gas utilisation methods (Cheng, et al. 2020), biofuel production from forest biomass (Ringsred et al., 2021), biofuels (Chiriboga et al., 2020), energy consumption environmental comparison of transport means (Wang et al., 2021) environmental impacts associated with products such as cross-insulated wood panels (Santos et al., 2021), AA alkaline batteries (Hamade et al., 2020), windows (Saadatian et al., 2021) comparison of power generation scenarios and photovoltaic systems among others existing (Sierra et al., 2020; Hadi & Heidari, 2021).
In recent years, interest in the LCA method has been increasing and this is reflected in the number of publications generated on this topic in different scientific journals. The progress study and state of research on this topic can be carried out using bibliometric studies. Bibliometrics uses statistics and quantitative studies to analyse the characteristics of the use and production of documents by reflecting how bibliographic sources are distributed with respect to a sector and the trend they follow (Spinak, 1998). Thus, bibliometric analysis is very useful to evaluate the scientific production generated around a particular topic of interest. As part of this analysis type, indicators such as the productivity of publications, authors, publishing institutions, countries, analysis by subject, citations and impact indices are used (Solano López et al., 2009).
In this article a bibliometric analysis of LCA is elaborated to represent the real status of this topic of great interest in the scientific area and wide application in companies, organisations, and institutions due to the benefits it can provide such as cost reduction in energy, water, fuel, environmental costs, and competitive advantage for their commitment to the transition towards more circular and sustainable processes and economy. This document is a Microsoft Word template. Please do not use other templates. The author(s) must strictly follow instructions to maintain the journal's high standard.
In a first phase, the Scopus and Web of Science databases were consulted in April 2021 using the search algorithm: LCA and bibliometric in the category Title for WoS, and LCA or Life and cycle and assessment and bibliometric in the categories title, abstract, keywords in Scopus.
The articles were limited to the period between 2000 and 2021. In this phase, articles were identified in which a bibliometric analysis on LCA had been carried out on a specific topic or, as in the present article, a review of the scientific production on this topic was carried out. The algorithm used was: LCA and bibliometric in the category Title for WoS, and LCA or Life and cycle and assessment and bibliometric in the categories title, abstract, keywords for Scopus. In Scopus, a subsequent reading of the articles abstracts was carried out to identify whether the article really had a bibliometric analysis on LCA purpose or whether, on the contrary, it did not fulfil the objective of this article as it was, for example, a key word for another analysed topic or a topic of greater scientific production within the bibliometric analysis carried out for another topic.
RESULTS
This bibliometric analysis seeks to show whether there is an increase in scientific production on this topic and to identify the organisations or universities with the greatest contribution, areas, and topics with highest number of publications in Scopus and Web of Science (WoS) databases.
In the Web of Science database, two bibliometric analyses were found in 2016 and 2019 prior to this article focusing on the scientific production around LCA in Brazil (Zanghelini et al., 2016) and conventional and prefabricated construction (Kushima Ramos et al., 2019) using the algorithm: LCA and bibliometric in the Title category. In the Scopus database, 56 results were initially found using the logarithm: LCA or Life and cycle and assessment and bibliometric in the categories title, abstract, keywords. Subsequently, the articles abstracts were read to filter those that were bibliometric analyses on LCA, finding related articles on the following topics: biorefineries (Lima et al., 2021) ecosystem services (VanderWilde & Newell, 2021) carbon capture, storage and use technologies LCA, solar photovoltaics, environmental footprint, architecture and construction bioenergy as well as bibliometric analyses on LCA scientific production (Tobias da Cruz et al., 2021; He & Yu, 2020; de Paula Teixeira, 2020; Martínez Delgado et al., 2019; Hu, 2019; Li et al., 2018; Visentin et al., 2019; Chen et al., 2014).
Bibliometric analysis of similar documents
Table 1 contains background information on documents in which a bibliometric analysis on LCA or on a topic using LCA has been carried out. This table shows that the bibliometric analyses on LCA from a general perspective, either globally or in a specific country, are the documents with the highest number of citations, demonstrating the interest in the subject; however, LCA is a constantly growing topic in terms of scientific production, as shown in Figure 1, which is why this author considers it important to keep this type of analysis updated so that the information provided and the topics of interest and trends are more in line with describing the topic status in scientific production.
Table 1.
Papers conducting bibliometric analysis on LCA.
Reference |
Topic |
Database |
Timespan |
Number of citations |
Zanghelini et al. (2016) |
LCA in Brazil |
Publications indexed in the Institute for Scientific Information |
1993-2015 |
14 |
Kushima Ramos et al. (2019) |
Conventional and prefabricated construction |
Google Scholar, Science Direct, WoS e Periódicos CAPES |
2013-2017 |
0 |
Lima et al. (2021) |
Biorefinery database systems |
WoS y Scopus |
2008 - 2018 |
1 |
VanderWilde & Newell (2021) |
Ecosystem services and LCA |
WoS |
1900 - 2019 |
0 |
|
Carbon capture, storage and use technologies |
Scopus |
1995-2018 |
0 |
Tobias da Cruz, et al. (2021) |
LCA trends |
WoS |
1990-2018 |
1 |
Martínez Delgado et al. (2019) |
Photovoltaic Solar Energy |
Scopus |
1998-2020 |
0 |
de Paula Teixeira (2020), |
Environmental footprint |
WoS |
1992- 2018 |
14 |
Source: The authors.
LCA bibliometric analysis
Table 2 and Figure 1, below show the number of publications on LCA in the databases consulted. Scopus contains the largest number of publications and, as in WoS, in the last 10 years, there has been an increase in production on this topic. This behaviour has been observed in other similar studies such as in (Li et al., 2018), where a bibliometric analysis is carried out between 2000 and 2014 and in which the authors indicate a marked growth from 2010 onwards, also visible in Figure 1, and which continues until 2020. Based on the results, the Scopus database provides a greater variety of documents on this topic compared to WoS.
Table 2.
Number of annual publications in Scopus and WoS (2000-2021).
Year |
Scopus |
WoS |
Year |
Scopus |
WoS |
2000 |
509 |
134 |
2011 |
2370 |
680 |
2001 |
570 |
161 |
2012 |
2835 |
807 |
2002 |
526 |
174 |
2013 |
3146 |
970 |
2003 |
781 |
216 |
2014 |
3465 |
1118 |
2004 |
845 |
220 |
2015 |
3535 |
1289 |
2005 |
1057 |
327 |
2016 |
3833 |
1419 |
2006 |
1210 |
304 |
2017 |
4347 |
1577 |
2007 |
1295 |
356 |
2018 |
4664 |
1842 |
2008 |
1452 |
340 |
2019 |
5025 |
1961 |
2009 |
1681 |
487 |
2020 |
5170 |
2213 |
2010 |
2037 |
608 |
2021 |
1947 |
619 |
Source: The authors.

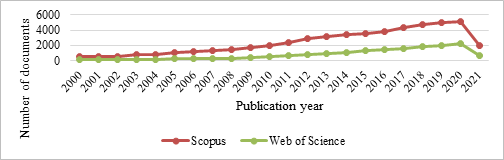

Figure 1. Papers published by year from 2000 to 2021 on LCA-related topics.
Source: The authors.
LCA bibliometric analysis
Table 3 shows the list of the most productive countries in Scopus and WoS. The 10 countries with the highest number of published papers were consulted and although the positions may vary according to the base consulted, the list remains the same except for Sweden which is only in the top 10 in Scopus and Australia in WoS. The United States and China continue to be the leading countries in LCA with respect to the number of publications and the countries in the top 5 are the same as those presented by He & Yu (2020). Table 4 shows that the top 5 organisations are from these two countries, justifying their leadership in the subject. In the table, Mexico's position in terms of production is added due to this article origin, demonstrating a need to generate scientific production on this topic by occupying places above number thirty.
Table 3.
Countries with the highest production of LCA documents (2000-2021).
Country |
Scopus |
WoS |
||
Ranking position |
Number of documents |
Ranking position |
WoS |
|
United States |
1 |
12089 |
1 |
3950 |
China |
2 |
5270 |
2 |
1840 |
United Kingdom |
3 |
4354 |
6 |
1173 |
Italy |
4 |
4145 |
3 |
1603 |
Germany |
5 |
4129 |
5 |
1308 |
Spain |
6 |
2834 |
4 |
1427 |
Canada |
7 |
2584 |
8 |
927 |
France |
8 |
2573 |
7 |
943 |
Australia |
9 |
2156 |
Not in top 10 |
668 |
Netherlands |
10 |
2083 |
9 |
889 |
Mexico |
32 |
134 |
317 |
37 |
Sweden |
Not in the top 10 |
1694 |
|
795 |
Source: The authors.
Table 4.
Organisations with the highest scientific production in LCA.
Organization |
Country |
WoS |
Scopus |
||
Ranking position |
Number of documents |
Ranking position |
Number of documents |
||
European Commission |
|
1 |
1109 |
1 |
2208 |
U.S. Department of Health and Human Services |
USA |
2 |
885 |
3 |
877 |
National Institutes of Health (USA) |
USA |
3 |
869 |
4 |
867 |
National Nature Science Foundation of China |
China |
4 |
783 |
2 |
1502 |
National Science Foundation |
USA |
5 |
398 |
5 |
860 |
Source: The authors.
Publications by topic
Table 5, shows the topics with the highest production. Environmental sciences and engineering are two predominant areas, which is consistent with the interest that has been generated in recent years in seeking a balance between social, economic, and environmental aspects in industrial processes and products. LCA is a decision-making tool for studying alternatives, which makes it very attractive for presenting options to a problem.
Table 5.
Publications by subject in WoS and Scopus.
WoS |
Scopus |
||||||
Area |
Number of documents |
Participation (%) |
Area |
Number of documents |
Participation (%) |
||
Environmental sciences |
8083 |
45,3 |
Engineering |
20294 |
20,4 |
||
Engineering |
7581 |
42,5 |
Environmental sciences |
19996 |
20,1 |
||
Science technology and other topics |
4328 |
24,2 |
Energy |
11315 |
11,4 |
||
Energy fuels |
2165 |
12,1 |
Medicine |
7155 |
7,2 |
||
Agriculture |
750 |
4,2 |
Business, administration, and accounting |
4691 |
4,7 |
||
Chemistry |
687 |
3,8 |
Social sciences |
4284 |
4,3 |
||
Building construction technology |
625 |
3,5 |
Agriculture and life sciences |
3886 |
3,9 |
||
Material science |
601 |
3,3 |
Computer science |
3881 |
3,9 |
||
Applied biotechnology and microbiology |
559 |
3,1 |
Material science |
3825 |
3,9 |
||
Psychology |
415 |
2,3 |
Chemical engineering |
2936 |
3 |
||
Source: The authors.
Furthermore, the history of international conventions, whether legally binding or not, encourages the use of these methodologies to ensure that their actions are in line with what has been subscribed to in the search for sustainable development. Both databases have areas related to industry, energy, environment, and technology in their categories with the highest participation. When relating the categories to the organisations with the highest production (Table 6), the participation of those focused on science is evident. Universities that generate information have also remained on the list and continue to produce documents on this topic.
Table 6
Universities with the highest scientific production.
Universities |
Country |
WoS |
Scopus |
|
||||||||
Ranking position |
Number of documents |
Ranking position |
Number of documents |
|||||||||
University of California System |
USA |
1 |
423 |
|
|
|
||||||
Technical University of Denmark |
Denmark |
2 |
385 |
1 |
699 |
|
||||||
INRAE- French National Research Institute for Agriculture, Food and the Environment |
France |
3 |
293 |
|
|
|
||||||
ETH Zurich |
Switzerland |
4 |
269 |
2 |
539 |
|
||||||
Centre National de la Recherche Scientifique CNRS |
Francia |
5 |
254 |
7 |
370 |
|
||||||
Norwegian University of Science Techonology NTNU |
Norway |
6 |
233 |
3 |
483 |
|
||||||
Chalmers University of Technology |
Sweden |
7 |
216 |
5 |
407 |
|
||||||
University of London |
United Kingdom |
8 |
212 |
|
|
|
||||||
University of Santiago de Compostela |
Spain |
9 |
207 |
|
|
|
||||||
Leiden University |
Netherlands |
10 |
207 |
|
|
|
||||||
Chinese Academy of Sciences |
China |
|
|
4 |
413 |
|
||||||
Ministerio de Educación de China |
China |
|
|
6 |
402 |
|
||||||
University of Michigan |
USA |
|
|
8 |
364 |
|
||||||
Politecnico di milano |
Italy |
|
|
9 |
364 |
|
||||||
Tsinghua University |
China |
|
|
10 |
350 |
|
||||||
Source: The authors

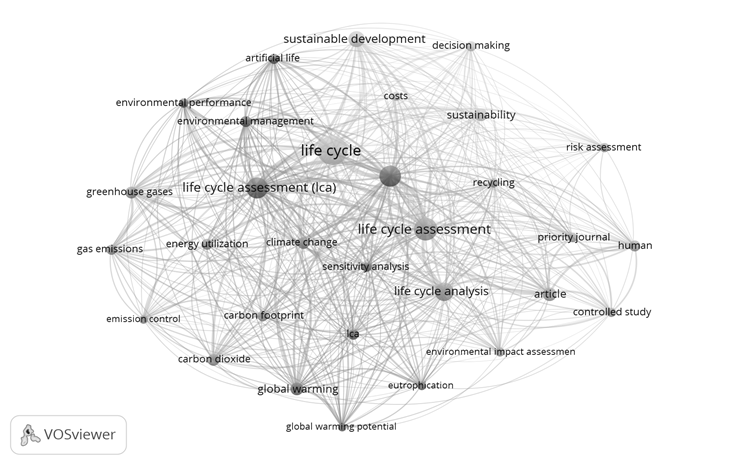

Figure 2, indicates the most frequently used words in the documents consulted for this bibliometric analysis. Life cycle is most associated with costs, decision-making, sustainability, and sustainable development. No major nodes are evident in the figure; however, it provides an idea of what specific topics LCA documents are being elaborated on including: greenhouse gases, climate change, carbon footprint, energy, emission control and gas emissions, global warming, recycling, environmental impact studies, among others. Table 1 shows bibliometric analyses on carbon footprint and energy and biofuel which have been cited 14 and 13 times respectively (Martínez-Delgado et al., 2019), (Li et al., 2018).
Figure 2. Keywords in LCA publications (2000-2021).
Source: The authors.
The scientific production on LCA has been increasing over the last 20 years and has become a useful tool for dissemination in organisations and institutions in different countries. The United States, China, Spain, Germany, and Italy have the highest production, while Mexico is between 32nd and 27th place according to the database consulted, which is why Mexican researchers and organisations are encouraged to generate more information on LCA. The topic with the most information is those corresponding to environmental sciences and engineering. There are bibliometric analyses on specific topics related to construction, energy, biofuels, carbon footprint, among others, for which bibliometric analyses have already been carried out. The keywords are varied and there is not yet a preponderance of any one of them, being a highly useful topic for different sectors.
FUNDING
Non-monetary.
ACKNOWLEDGEMENTS
We thank all those who made this research posible.
Aristizábal Alzate, C. E., González Manosalva, J. L., & Gutiérrez Cano, J. C. (2020). Life cycle analysis and carbon footprint calculation for a PET bottle recycling process in Medellin (ANT). Clean Prod, 15(1), 7-24. https://doi.org/10.22507/pml.v15n1a1
Bovea, M. D., Cruz Sotelo, S. E., Mercante, I., Countinho Nóbrega, C., Eljaiek Ursola, M., & Ibáñez Flores, V. (2017). Application of life cycle analysis methodology to assess the environmental performance of waste management systems in Latin America. Int J Environ Pollut, 32, 23-46. https://n9.cl/h6jfy
Chen, H., Yang, Y., Yang, Y., Jiang, W., & Zhou, J. (2014). A bibliometric investigation of life cycle assessment research in the web of science databases. The International Journal of Life Cycle Assessment, 19, 1674-1685. https://doi.org/10.1007/s11367-014-0777-3
Cheng, G., Zhao, Y., Pan, S., Wang, X., & Dong, C. (2020). A comparative life cycle analysis of wheat straw utilization modes in China. Energy, 194(1). https://doi.org/10.1016/j.energy.2020.116914
Chiriboga, G., De La Rosa, A., Molina, C., Velarde, S., & Carvajal C, G. (2020). Energy Return on Investment (EROI) and Life Cycle Analysis (LCA) of biofuels in Ecuador. Heliyon, 6(6), e04213. https://doi.org/10.1016/j.heliyon.2020.e04213
Deng, L. & Adams II, TA. (2020). Comparison of steel manufacturing off-gas utilization methods via life cycle analysis. J Clean Prod, 277, 123568. https://doi.org/10.1016/j.jclepro.2020.123568
De Paula Teixeira, W. (2020). Life Cycle Assessment (LCA) Photovoltaic Solar Energy: A Bibliometric Literature Review. In: Thomé, A. M. T., Barbastefano, R. G., Scavarda, L. F., dos Reis, J. C. G., Amorim, M. P. C. (eds) Industrial Engineering and Operations Management. IJCIEOM 2020. Springer Proceedings in Mathematics and Statistics, 337. Springer, Cham. https://doi.org/10.1007/978-3-030-56920-4_6
Hadi, E., & Heidari, A. (2021). Development of an integrated tool based on life cycle assessment, Levelized energy, and life cycle cost analysis to choose sustainable Facade Integrated Photovoltaic Systems. J Clean Prod, 293, 126117. https://doi.org/10.1016/j.jclepro.2021.126117
Hamade, R., Al Ayache, R., Bou Ghanem, M., El Masri, S., & Ammouri, A. (2020). Life Cycle Analysis of AA Alkaline Batteries. Procedia Manuf, 43, 415-422. https://doi.org/10.1016/j.promfg.2020.02.193
He, X., & Yu, D. (2020). Research trends in life cycle assessment research: A 20-year bibliometric analysis (1999–2018). Environ Impact Assess Rev, 85. https://doi.org/10.1016/j.eiar.2020.106461
Hu, M. (2019). A Review of Life Cycle Research of the Built Environment At Difference Scales: a Citation Analysis Using Big Data. J Green Build, 14(3), 63-80. http://dx.doi.org/10.3992/1943-4618.14.3.63
Li, J., Wang, Y., & Yan, B. (2018). The hotspots of life cycle assessment for bioenergy: A review by social network analysis. The Science of the total environment, 625, 1301-1308. https://doi.org/10.1016/j.scitotenv.2018.01.030
Kushima Ramos, V. M., Lacerda Santos, A. d. P., & Corrêa Maceno, M. M. (2019). Análise bibliométrica de estudos comparativos entre a construção convencional e a pré-fabricada por meio da ACV [Bibliometric analysis of comparative studies between conventional and prefabricated construction using LCA]. Revista de Gestão Ambiental e Sustentabilidade, 8(1), 81-99. https://doi.org/10.5585/geas.v8i1.13765
Li, Q., Duan, H., Xie, M., Kang, P., Ma, Y., Zhong, R., & et al. (2021). Life cycle assessment and life cycle cost analysis of a 40 MW wind farm with consideration of the infrastructure. Renew Sustain Energy Rev, 138. https://doi.org/10.1016/j.rser.2020.110499
Lima, R.S., de Azevedo Caldeira Pires, A., & Cardoso, A. N. (2020). Uncertainty Analysis in Life Cycle Assessments Applied to Biorefineries Systems: A Critical Review of the Literature. Process Integr Optim Sustain, 4, 1-13. https://doi.org/10.1007/s41660-019-00103-9
Martínez Delgado, S., Delgado Arroyo, M. d. M., Martínez Marín, R. & Álvarez Gallego, S. (2019). Science mapping on the Environmental Footprint: A scientometric analysis based review. Ecological Indicators, 106, 105543. https://doi.org/10.1016/j.ecolind.2019.105543
Ringsred, A., Van Dyk, S., & Saddler, J. (2021). Life-cycle analysis of drop-in biojet fuel produced from British Columbia forest residues and wood pellets via fast-pyrolysis. Appl Energy, 287(1). https://doi.org/10.1016/j.apenergy.2021.116587
Saadatian, S., Simões, N., & Freirea, F. (2021). Integrated environmental, energy and cost life-cycle analysis of windows: Optimal selection of components. Build Environ. 363(20). https://doi.org/10.1016/j.jclepro.2022.132624
Santos, P., Correia, J. R., Godinho, L., Dias, A. M. P .G., & Dias, A. (2021). Life cycle analysis of cross-insulated timber panels. Structures, 31, 1311-1324. https://doi.org/10.1016/j.istruc.2020.12.008
Sharma, B. K., & Chandel, M. K. (2021). Life cycle cost analysis of municipal solid waste management scenarios for Mumbai Title. Waste Manag, 124, 293-302. https://doi.org/10.1016/j.wasman.2021.02.002
Sierra, D., Aristizábal, A. J., Hernández, J. A., & Ospina, D. (2020). Life cycle analysis of a building integrated photovoltaic system operating in Bogotá, Colombia. Energy Reports, 6(3), 10-19. https://doi.org/10.1016/j.egyr.2019.10.012
Solano López, E., Castellanos Quintero, S., López Rodríguez del Rey, M., & Hernández Fernández, J. (2009). La bibliometría: una herramienta eficaz para evaluar la actividad científica postgraduada [Bibliometrics: an effective tool for assessing postgraduate scientific activity]. MediSur, 7(4), 59-62. https://n9.cl/jw5st6
Spinak, E. (1998). Scientometric indicators. Ciência Da Informação, 27(2). https://doi.org/10.1590/S0100-19651998000200006
Tobias da Cruz, T., Perrella Balestieri, J. A., de Toledo Silva, J.M., R N Vilanova, M., Oliveira, J. O., & Ávila, I. (2021). Life cycle assessment of carbon capture and storage/utilization: From current state to future research directions and opportunities. Int J Greenh Gas Control, 108, 103309. https://doi.org/10.1016/j.ijggc.2021.103309
VanderWilde, C. P., & Newell, J. P. (2021). Ecosystem services and life cycle assessment: A bibliometric review. Resour Conserv Recycl, 169. https://doi.org/10.1016/j.resconrec.2021.105461
Visentin, C., da Silva Trentin, A. W., Braun, A. B., & Thomé, A. (2019). Application of life cycle assessment as a tool for evaluating the sustainability of contaminated sites remediation: A systematic and bibliographic analysis. Science of the total environment, 672, 893-905. https://doi.org/10.1016/j.scitotenv.2019.04.034
Wang, Y. Z., Zhou, S., & Ou, X. M. (2021). Development and application of a life cycle energy consumption and CO2 emissions analysis model for high-speed railway transport in China. Adv Clim Chang Res, 12(2), 270-280. https://doi.org/10.1016/j.accre.2021.02.001
Zanghelini, G. M., de Sousa Junior, H. R. A., Kulay, L., Cherubini, E., Ribeiro, P. T., & Soares, S. R. (2016). A bibliometric overview of Brazilian LCA research. Int J Life Cycle Assess, 21(12), 1759-1775. https://doi.org/10.1007/s11367-016-1132-7
